[handwork dairy] sofa table - 7th : temporary assembly


step 1 : insert stretcher into side panels



step 2 : the other side



step 3 : lay over the top onto tenon of the side panels


step 4 : insert butterfly key into the hole

[handwork dairy] sofa table - 6th : Tapered Sliding Dovetail


made saw and chisel guide temporary



after plowing out with router plane,
trimmed inside with chisels


cheese~~


one is the guide of the other



made dovetail with my own made dovetail plane



front is narrow



right is narrow


I could push it without a mallet upto here


my own made dovetail plane / recoilless hammer

[handwork dairy] sofa table - 5th : Butterfly key joint


Chamjook (of Korean)



Dimensioned



cut the center upto pencil line



push chisel with hands,
no mallet



two butterflies ^^



after sawing down to pencil line
plowed out with router plane and chisels




assembled temporary... good enough ?


[handwork dairy] sofa table - 4th : side panel


sawed the symbol of "BAT" with my hand scroll saw



Veritas small Plow plane


plowed out...



completed a rabbet on one side with bailey #4


trimming with Router plane



After making tenons with Dozuki and chisels,
adjusting the thickness with Router plane

[handwork dairy] sofa table - 3rd : stretcher


After pre-sawing with dozuki to prevent tear-out


plowed out with Router plane


sawing curvature with frame saw


[handwork dairy] sofa table - 2nd : CAD



On the side panels, there is the Korean-traditional symbol.
It represents "bat".
People use this when they desire "bearing many young".


Joints : Tapered Sliding Dovetail , Butterfly key joint , Tenon - mortise
Material : Cherry
CAD tool : Sketchup

[handwork dairy] Sofa table - 1st : Top

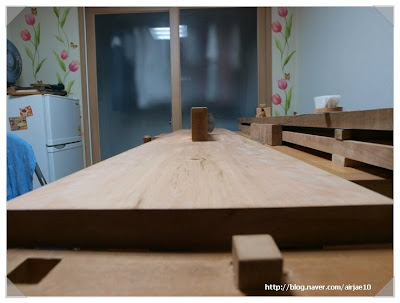

Fore planing with Veritas Scrub & BUS (tooth blade)


Smooth planing with japanese long plane

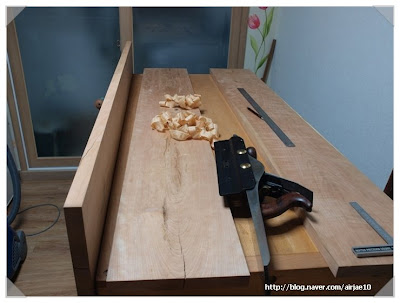

Triming edges for panel jointing with #7 and jointer fence

Cherry
Top of the Sofa table
1300 X 650 X 26 (mm)
